The Ultimate Guide to uPVC Guttering Components: What Each Part Does (and Why It Matters)

When you look at a guttering system, it can seem deceptively simple. A few lengths of guttering, a downpipe or two, and the job is done. In reality, a reliable rainwater system depends on a full range of uPVC guttering components working together, each one designed for a specific purpose.

At DRAC Ltd (Docherty Roofing & Cladding), we supply a wide selection of uPVC guttering parts that help installers, contractors, and homeowners build rainwater systems that perform properly in the long term. Whether you are fitting a brand-new system or replacing damaged parts, understanding what each component does will help you avoid leaks, poor drainage, and expensive future repairs.

In this guide, we break down the most common uPVC guttering components, explain where they are used, and highlight why each part matters.

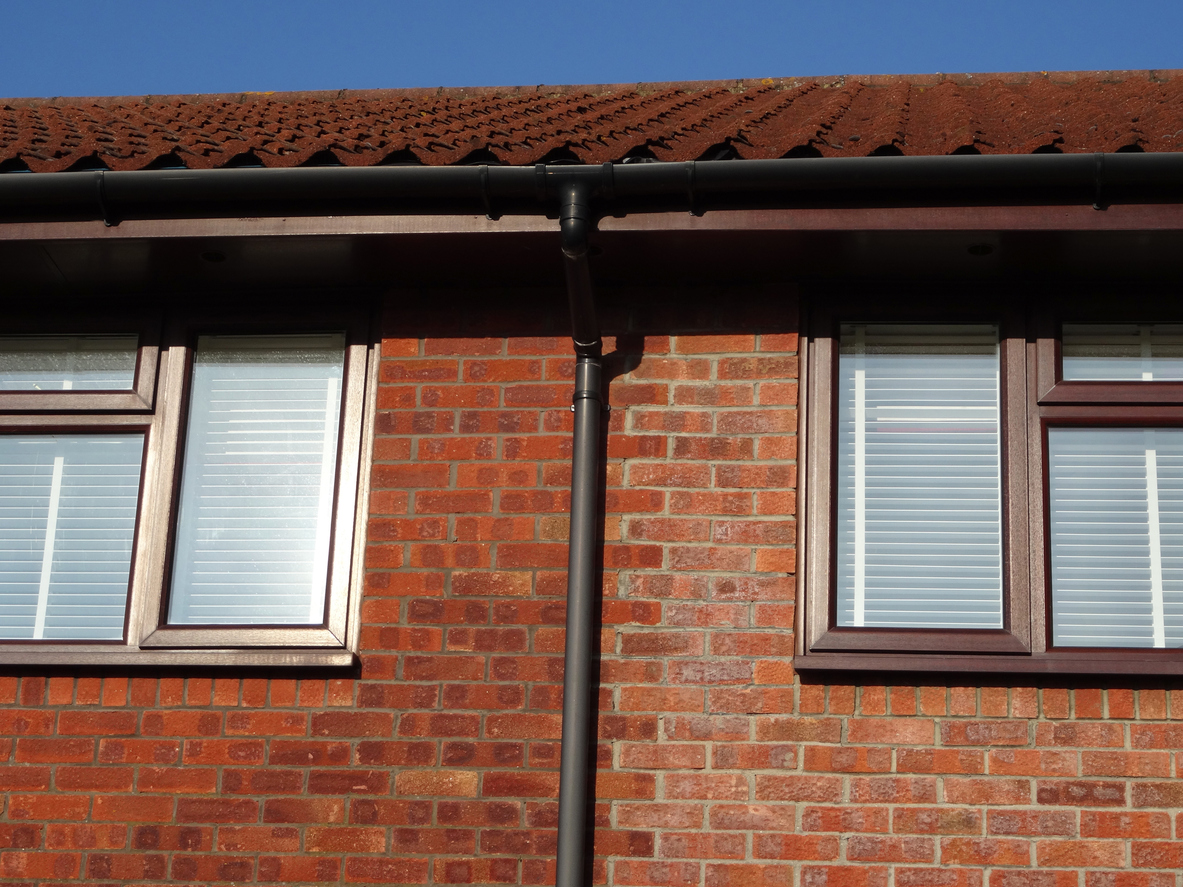

uPVC Guttering Components Guide



Why uPVC guttering components matter

A guttering system is designed to control the flow of rainwater from your roof, channel it safely away from the building, and protect the structure from moisture damage. When one part fails or is fitted incorrectly, the whole system can suffer.

The right components matter because they:

  • Prevent water from overflowing and soaking walls

  • Reduce the risk of damp and mould inside the property

  • Protect brickwork and render from staining

  • Prevent erosion around foundations

  • Help avoid pooling water on paths and driveways

  • Support long-term roofline performance

Even small parts, such as brackets and seals, play a key role in keeping everything stable and watertight.

What is a uPVC guttering system made up of?

Most uPVC guttering systems include:

Each of these parts has a clear job, and selecting the correct combination ensures rainwater flows smoothly from roof to drain.

Gutter lengths: the main channel for rainwater

The most visible component is the gutter length itself. This is the horizontal section fixed along the roofline that collects rainwater from the roof tiles and directs it toward an outlet.

Gutter lengths usually come in standard sizes, often 2m or 4m sections, depending on the system and manufacturer.

Why gutter lengths matter

The gutter is responsible for carrying large volumes of water, especially during heavy rainfall. If the gutter size is too small for the roof area, water will overflow and spill down external walls. If the gutter is installed with poor alignment or incorrect fall, water can sit and stagnate rather than drain.

Common gutter profiles

uPVC gutters are manufactured in different shapes and capacities. The most common include:

The profile you choose affects both appearance and performance. Some profiles suit domestic properties better, while others handle higher flow rates for larger buildings.

At DRAC Ltd, we supply guttering components suitable for a range of system styles, allowing you to match the existing guttering or install a consistent new system.

Fascia brackets: the support that holds everything in place

Fascia Bracket fittings are the fixings that attach the guttering to the fascia board. They are spaced evenly along the roofline and carry the weight of the gutter.

This might seem like a minor component, but it is one of the most important parts of the system.

Why fascia brackets matter

Brackets support the guttering under all conditions. They must handle:

  • Heavy rainfall

  • Standing water if there is a blockage

  • Snow and ice weight in winter

  • Movement from temperature changes

If brackets are spaced too far apart, the gutter can sag. Sagging creates standing water, which leads to leaks, overflow, and premature wear.

Correct spacing

Most installations require brackets every 800mm to 1m, with extra brackets placed near outlets, angles, and unions for added strength.

A properly bracketed guttering run looks neat, performs better, and lasts longer.

Union connectors: joining gutter lengths securely

A union connector joins two lengths of gutter together. These connectors include seals or gaskets that create a watertight join.

A common fitting used for this purpose is the Union Bracket, which helps create a stable connection between gutter sections.

Why union connectors matter

Poor joints are one of the most common causes of gutter leaks. A good union connector ensures:

  • Water does not escape through gaps

  • The gutter maintains its strength across the join

  • Expansion and contraction can occur without cracking

uPVC expands and contracts with temperature changes. Without a proper union, the gutter can warp or split, particularly during seasonal extremes.

Running outlets: the link between gutter and downpipe

A running outlet is the component that allows water to leave the gutter and enter the downpipe. It is fitted into the gutter run and includes a drop outlet that connects to the vertical pipe.

A popular option is the Running Stopend Outlet, which combines a stop end and outlet into one fitting.

Why running outlets matter

The outlet is where the water flow concentrates. In heavy rain, a large volume of water funnels into this one point. If the outlet is incorrectly positioned or blocked, the gutter can overflow quickly.

Running outlets also affect how the system drains. Positioning outlets in the right location reduces the need for excessive pipework and improves overall efficiency.

Many systems use one outlet per run, but larger properties may require multiple outlets to handle higher roof areas.

Gutter angles: managing corners correctly

Where guttering changes direction, you need an angle fitting. These are available in two main types:

  • Internal angles for corners that turn inward

  • External angles for corners that turn outward

Angles are commonly 90 degrees, but other angles can be used depending on the building shape. For example, a 90 Bend is often used when changing direction in downpipe runs.

Why gutter angles matter

Angles must align correctly to maintain a consistent fall and ensure water flows properly. If angles are misaligned, water can pool at corners, leading to debris build-up and increased leak risk.

Angles also add structural stability to the guttering system. They help keep the gutter run rigid and properly shaped.

Stop ends: sealing off the gutter run

A Stop End is used at the end of a gutter run to seal it off and prevent water from flowing out.

Stop ends come in left-hand and right-hand versions depending on which direction the gutter run finishes.

Why stop ends matter

Stop ends protect the system from leaks at termination points. They are particularly important where guttering does not continue around the building, such as:

  • Porches

  • Conservatories

  • Garage rooflines

  • Single elevation installations

A missing or poorly fitted stop end can cause water to spill directly onto walls and foundations.

Downpipes: carrying water safely to ground level

Once water leaves the gutter through the outlet, it enters the Downpipe. Downpipes are vertical pipes fixed to the wall that transport rainwater down to a drain, gully, or soakaway.

Why downpipes matter

Downpipes are responsible for preventing uncontrolled water discharge. Without effective downpipes, rainwater can:

  • Splash onto walls and cause staining

  • Soak brickwork and create damp issues

  • Pool around foundations and contribute to structural problems

Downpipes must be correctly sized to match the gutter system. A downpipe that is too narrow can struggle in heavy rainfall, especially on larger roof areas.

Pipe bends: changing direction around rooflines and walls

A downpipe system rarely runs perfectly straight from gutter to drain. That is where pipe bends become essential.

Pipe bends allow the pipework to change direction, commonly around:

  • Soffits

  • Eaves overhangs

  • Bay windows

  • External wall features

Common bend angles

Most uPVC systems use bends in angles such as:

  • 112.5 degrees

  • 92.5 degrees

A typical fitting used for these changes in direction is the 90 Bend, depending on the system layout.

Why pipe bends matter

Using the correct bends ensures water travels smoothly through the pipe without turbulence or unnecessary resistance. Poorly planned pipe bends can create choke points where debris collects, increasing the risk of blockages.

Offset bends: bridging the gap between gutter and wall

On many buildings, the gutter outlet does not sit directly above the wall face. Roof overhangs mean the downpipe must be brought back toward the wall using an offset.

This is typically achieved using:

  • Two bends

  • A short piece of downpipe between them

This short connecting section often uses a Socket or Double Socket Couplers depending on the downpipe design.

Why offsets matter

A properly formed offset keeps the downpipe close to the wall, improving appearance and stability. It also ensures the downpipe aligns neatly with the drain connection at ground level.

Incorrect offset planning can result in awkward pipe angles, poor fixing points, and increased stress on joints.

Pipe clips: securing downpipes firmly

Pipe clips are used to fix downpipes securely to the wall. They wrap around the pipe and attach to masonry with screws and wall plugs.

A common support fitting is the Flo Bracket, which helps keep pipework stable and aligned.

Why pipe clips matter

Downpipes are exposed to wind, vibration, and movement. Without clips, pipes can pull away from walls, loosen at joints, or crack under pressure.

Correctly placed clips ensure:

  • A tidy, professional finish

  • Strong support across the full pipe length

  • Reduced risk of movement-related leaks

As a general guide, pipe clips should be installed at regular intervals, often every 1.8m to 2m, with additional clips near bends and outlets.

Pipe connectors and sockets: joining downpipe sections

Downpipes are supplied in set lengths, so you need connectors or socketed joints to join them together.

Many uPVC downpipes include a socket end built into the pipe length, allowing the next section to slot in. If additional joins are needed, installers often use a Socket or Double Socket Couplers.

Why connectors matter

Connectors ensure:

  • A secure fit between pipe sections

  • A watertight joint

  • Strength across the full downpipe run

Poor connections can lead to water leaking down the wall, which can cause damp patches and exterior staining.

Pipe shoes: directing water into the drain

A Downpipe Shoe is fitted at the bottom of the downpipe. It angles outward slightly and directs water into a gully, drain, or hopper.

Why pipe shoes matter

Without a shoe, water would pour straight down and potentially splash back onto the building or cause erosion around the base.

Pipe shoes are especially important where drainage points sit slightly away from the wall. They help guide water accurately and reduce mess during heavy rainfall.

Hopper heads: managing larger water flow and multiple inputs

Some installations use hopper heads, which are open-topped fittings that collect water before it enters a downpipe.

Hoppers are often used where:

  • Multiple gutter runs meet

  • A flat roof drains into a vertical outlet

  • A decorative feature is required on traditional buildings

Why hopper heads matter

Hoppers provide additional capacity and reduce overflow risk in high flow areas. They also allow easier inspection and cleaning, as debris is more visible and accessible.

Adaptors and connectors: ensuring compatibility between systems

Not all guttering and downpipe systems are identical. Different manufacturers may use slightly different dimensions, profiles, or joint styles.

That is why adaptors are often required, especially for repairs or partial replacements.

Why adaptors matter

Adaptors allow you to:

  • Connect old guttering to new components

  • Repair a section without replacing the full system

  • Transition between different pipe shapes or sizes

Using the correct adaptor avoids leaks and ensures the system remains structurally sound.

Why choosing the right components makes installation easier

When installers select the right parts from the start, everything fits together properly, installation is quicker, and the finish looks clean.

Correct component selection also reduces common issues such as:

  • Leaking joints

  • Sagging gutter runs

  • Overflow during heavy rain

  • Blocked outlets

  • Downpipes pulling away from the wall

At DRAC Ltd, we supply a full range of uPVC guttering components so you can build a complete system without mixing incompatible parts.

Common mistakes when choosing uPVC guttering components

Even experienced installers can run into problems when the wrong parts are used. Some of the most common mistakes include:

Mixing systems from different profiles

Half round and square line guttering use different fittings. Even if they look similar, the joint shapes often differ.

Using too few brackets

Brackets that are spaced too far apart lead to sagging and pooling water. Choosing the correct support fitting such as a Fascia Bracket makes a major difference.

Forgetting expansion gaps

uPVC expands in heat. Without proper allowance at unions and outlets, gutters can warp or crack.

Incorrect outlet positioning

Placing outlets too far from the natural fall of the roofline can lead to standing water and debris build-up.

Poor downpipe alignment

If offsets are not planned properly, the downpipe can look untidy and become harder to secure correctly.

to choose the right uPVC guttering components for your project

When planning a guttering installation or repair, it helps to consider:

  • The size of the roof area and expected water volume

  • The style of gutter profile required

  • The number of corners and direction changes

  • The most efficient downpipe route

  • The location of drains and gullies

  • Whether you are replacing like-for-like or upgrading

If you are unsure, it is always worth checking existing measurements and system type before ordering parts.

Why quality uPVC components are a smart investment

Choosing reliable guttering components saves money long-term. Higher quality parts:

  • Fit properly the first time

  • Reduce the chance of leaks and repairs

  • Last longer under UV exposure

  • Resist cracking in cold conditions

  • Stay secure in high winds

They also improve the overall appearance of the property, which matters for homeowners and commercial sites alike.

Get the right uPVC guttering components from DRAC Ltd

A uPVC guttering system is only as strong as the components that make it up. Gutters, brackets, unions, angles, outlets, downpipes, bends, and clips all play a role in ensuring rainwater drains efficiently and your building stays protected.

At DRAC Ltd (Docherty Roofing & Cladding), we supply a wide range of uPVC guttering components to support repairs, upgrades, and complete installations. Whether you need a single replacement fitting or a full set of parts for a new project, we can help you source the right products quickly and reliably.

Browse our Flashings & Gutters range today or contact our team for advice on selecting the correct parts for your installation.
